Count non leaf nodes in binary tree having one child node (BFS/example)

  • Given a binary tree in java.
  • Calculate number of non-leaves having one child node.
    • i.e. count the number of nodes in binary tree having either left or right child.
  • Traverse the binary tree  non recursive algorithm.
  • We have already discussed other flavors of current problem:
    • Count non leaf nodes in a binary tree having two children (left child & right child).
    • Count non leaf nodes in a binary tree (having one child or both children).

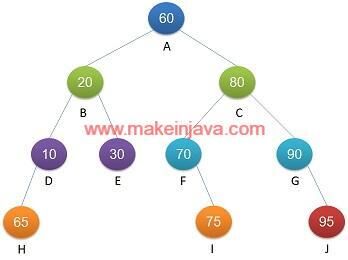

non leaf one child binary tree in java
Fig 1: Count non leaf node (one child)

Examples: non leaf nodes in binary tree having one child

Example 1 – Non leaf node having left child only

Non leaf node left child only
Fig 2: Non leaf node left child
  • Iterate through the binary tree using BFS or level order traversal.
  • Find non leaf node having left child only?
    • The node having non null left child & null right child.
  • Get number of non leaf nodes in a binary (having one left child node).

The conditional statement at non leaf node is as follows.

if(nonLeafNode.left != null && nonLeafNode.right==null) {
 // Leaf node having left child only and right child is null
}

Example 2 – Non leaf node having right child only

Non leaf node right child in binary tree
Fig 3: Non leaf node (right child)

The algorithm to count non leaf nodes in a binary tree is similar to example 1. The conditional statement at non leaf nodes is as follows:

if(nonLeafNode.left == null && nonLeafNode.right!=null) {
 // Leaf node having right child only and left child is null
}

Example 1 & Example 2 conditional statements are sufficient, to calculate number of non leaf nodes having either left or right child in a binary tree.

Example 3 – Non leaf nodes having left child or right child

  • Traverse the binary tree using breadth first search algorithm (Fig 4)
  • Declare a variable nNonLeaves = 0
  • During iteration check, current node has left or right child only (example 1 & example 2).
    • nNonLeaves ++ (if non leaf node has left or right child only).
  • At the end of iteration, we will number of non leaf nodes having one child node.
  • Number of non leaf nodes of binary tree is 3.

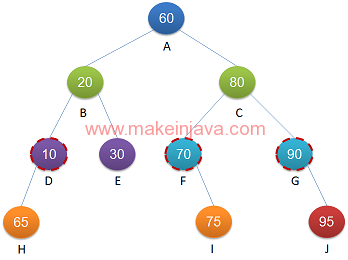

non leaf left or right child
Fig 4: Count non leaf nodes

Time complexity of algorithm is O(n).

Program: number of non leaf nodes in a binary tree – BFS.

1.) CountNonLeafNodes Class:

CountNonLeafNodes class is responsible for calculating the number of non leaf nodes having one child only using level order traversal (non recursive algorithm).

package org.learn.Question;

import java.util.LinkedList;
import java.util.Queue;

public class CountNonLeafOneChild {
	public static int countNonLeafOneChild(Node root) {
		if (root == null) {
			System.out.println("Tree is empty");
			return -1;
		}
		int nNonLeaves = 0;
		Queue<Node> queue = new LinkedList<Node>();
		queue.offer(root);

		while (!queue.isEmpty()) {
			Node node = queue.poll();

			if( (node.left != null && node.right == null)
					|| (node.left == null && node.right != null) ) {
				nNonLeaves++;
			}

			if (node.left != null) {
				queue.offer(node.left);
			}
			if (node.right != null) {
				queue.offer(node.right);
			}
		}
		System.out.println("Number of non-leaf nodes in a binary tree: " + nNonLeaves);
		return nNonLeaves;
	}
}

2.) Node class:

Node Class representing nodes of a binary tree.

package org.learn.Question;

public class Node {
	public int data;
	public Node left;
	public Node right;

	public Node(int num) {
		this.data = num;
		this.left = null;
		this.right = null;
	}

	public Node() {
		this.left = null;
		this.right = null;
	}

	public static Node createNode(int number) {
		return new Node(number);
	}
}

3.) App Class:

  • Create the binary tree.
  • Invoke CountNonLeafNodes method to calculate number of leaf nodes using level order traversal algorithm.
package org.learn.Client;

import org.learn.Question.CountNonLeafOneChild;
import org.learn.Question.Node;

public class App {
	public static void main(String[] args) {
		// root level 0
		Node A = Node.createNode(60);
		// Level 1
		Node B = Node.createNode(20);
		Node C = Node.createNode(80);
		// Level 2
		Node D = Node.createNode(10);
		Node E = Node.createNode(30);
		Node F = Node.createNode(70);
		Node G = Node.createNode(90);
		// Level 3
		Node H = Node.createNode(65);
		Node I = Node.createNode(75);
		Node J = Node.createNode(95);

		// connect Level 0 and 1
		A.left = B;
		A.right = C;
		// connect level 1 and level 2
		B.left = D;
		B.right = E;
		C.left = F;
		C.right = G;
		// connect level 2 and level 3
		D.left = H;
		F.right = I;
		G.right = J;

		CountNonLeafOneChild.countNonLeafOneChild(A);
	}
}

Output : Number of non leaf nodes in binary tree:

Number of non-leaf nodes in a binary tree: 3

Code – Non Leaf nodes binary tree (BFS/non-recursive)
